This budget pressed steel Mount Plate range does not offer any vertical adjustment to the hinge other than the eliptic fixing slot. Pre-mounted EURO fixing screws for pre-drilled 5mm diameter holes...
This budget pressed steel Mount Plate range does not offer any vertical adjustment to the hinge
other than the eliptic fixing slot.
Suitable for hinge ranges 200, 400, 700, 900, F & M.
Requir...
A good quality diecast Mount Plates. They offer a good range of integral cam-action vertical adjustment. Hinge Arm slides on and is screwed tight. These plates are suitable for hinge series 200, 40...
This version is fitted with pre-mounted Euro screws for installation on cabinets with pre-drilled 5mm diameter holes on 32mm pitch centres.
Screw holes to be drilled 37mm from edge of the carcase....

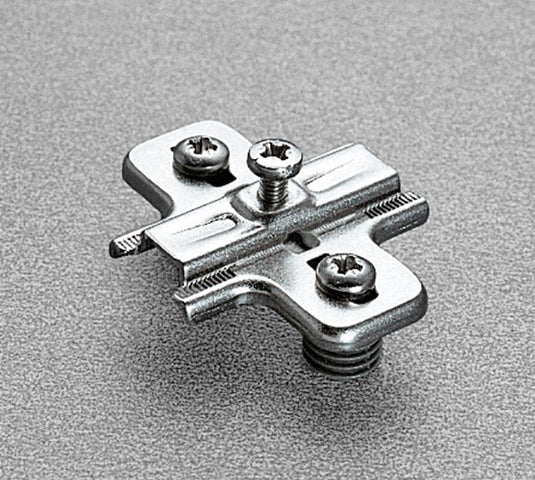

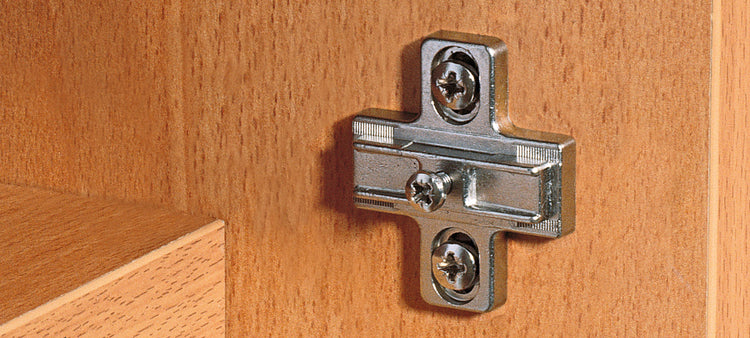

Symmetrical cruciform mounting plates made from Steel. For hinges Series 100, 200, 400, 600, 800, 900, F, M, universal hinges and Silentia+.

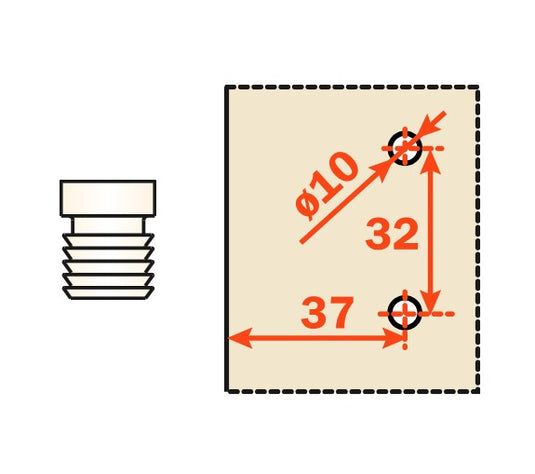

For use with pre-drilled 10mm holes.
37x32 mm drilling.
...
