SKU: S05C2C7G39

Salice 94° Half Overlay Glass Door Hinge - C2C7G39

Vendor Salice
Regular price £5.50
each
Sale price £5.50 Regular price
Sale Sold out
Unit price
/per
Tax included.
This is a pre order item. We will ship it when it comes in stock.
You may also need...

Most items available for same day despatch

Safe and secure checkout

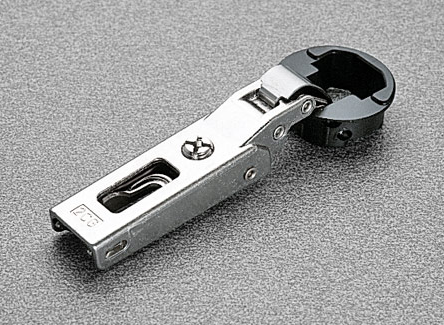

This Series 200 hinge is designed to be used on glass doors with a thickness of 4-6mm.

  • 26mm Cup Diameter
  • 94 Degree Opening
  • 9mm Crank
  • Designed for half overlay doors

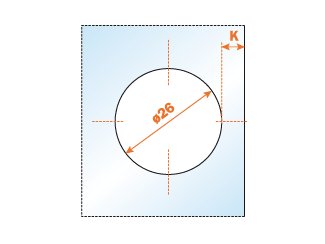

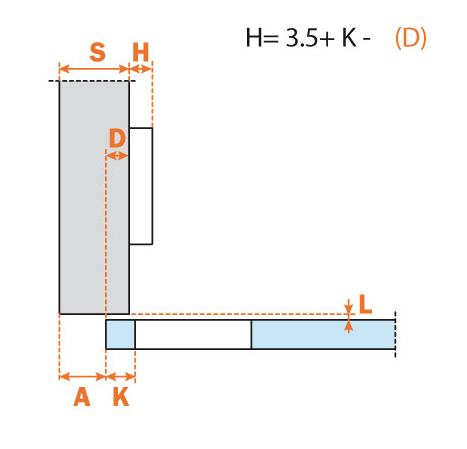

The possible drilling distance of the cup hole is 5.5 - 6.5mm from the edge of the door. To work out the height of mount plate required please consult the formula image to the left.

Compatible with all mount plates on this page.

 Download the Salice Glass Hinge Range Catalogue

Description

This Series 200 hinge is designed to be used on glass doors with a thickness of 4-6mm.

  • 26mm Cup Diameter
  • 94 Degree Opening
  • 9mm Crank
  • Designed for half overlay doors

The possible drilling distance of the cup hole is 5.5 - 6.5mm from the edge of the door. To work out the height of mount plate required please consult the formula image to the left.

Compatible with all mount plates on this page.

 Download the Salice Glass Hinge Range Catalogue
