SKU: S05C716AE9-KIT-SC

Salice Silentia+ C716AE9 Lapis Hinge Full Overlay Soft Close with Covers

Vendor Salice
Regular price £15.79
per set
Sale price £15.79 Regular price
Sale Sold out
Unit price
/per
Tax included.
Finish:
Satin Chrome
Matt White
Black
Satin Gold
Satin Metal Black
This is a pre order item. We will ship it when it comes in stock.
You may also need...

Most items available for same day despatch

Safe and secure checkout

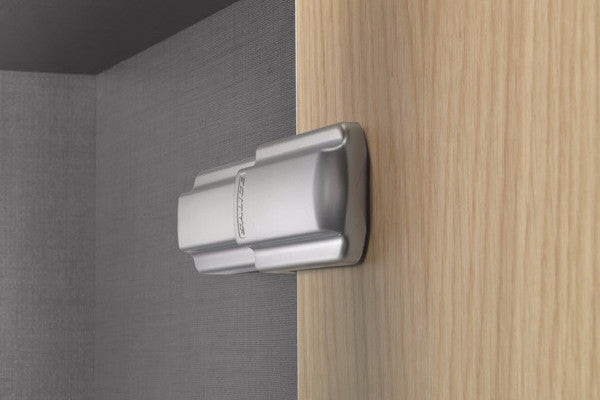

The new Lapis range from Salice is made of two covers which move with the hinge elements synchronously, hiding the technical components and enriching the product with refined aesthetics, far from the traditional geometries of furniture hinges.

Tech Details
  • Full overlay hinge - 0mm crank
  • Wood screw fixing (not supplied)
  • To suit door thickness 16-26mm

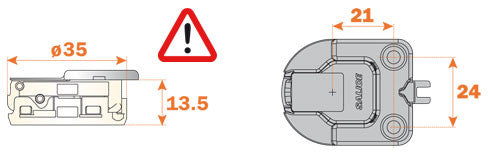

  • 35mm diameter cup
  • 13.5mm deep cup
  • 110 Degree opening

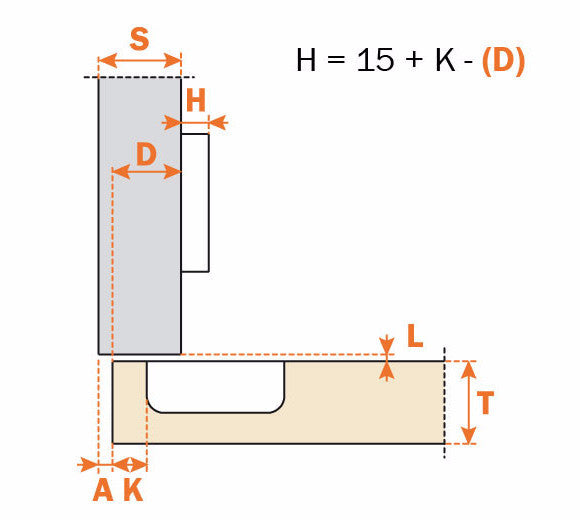

  • Possible drilling distance (K): 3mm - 6mm

Lapis is sold as a complete unit (not pair, please select two for that), just select the finish of cover you desire using the drop-down box and you're good to go. That includes:

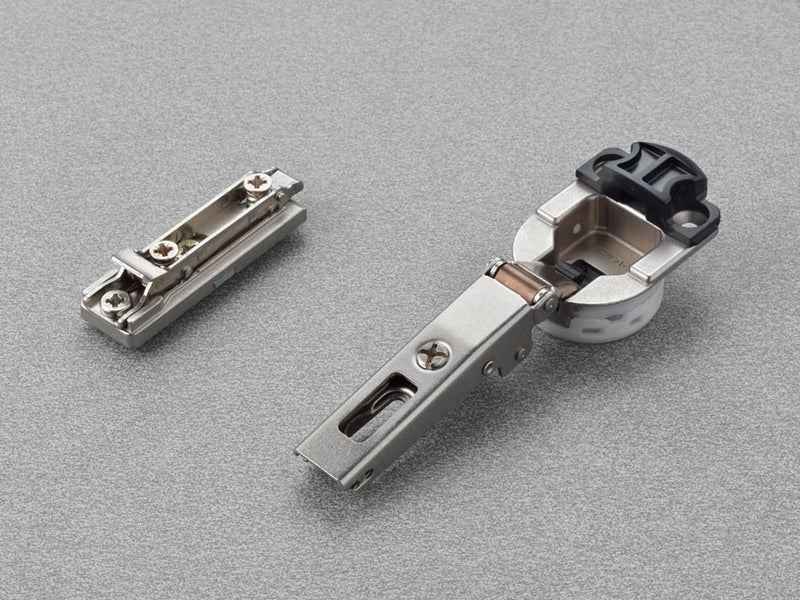

  • C716AE9 Silentia+ 0mm Crank Full Overlay Soft Close Hinge
  • 0mm Clip-On Mount Plate - BAPGM09
  • Arm Cover
  • Cup Cover

Cover Finishes Available from stock:

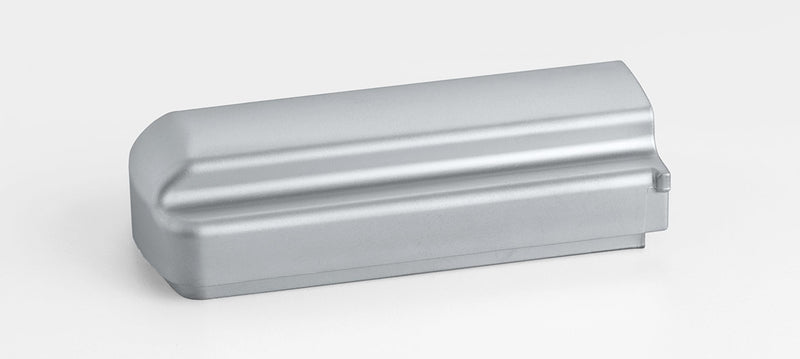

  • Satin Chrome (P7A0A09 & P7SXA09SN)

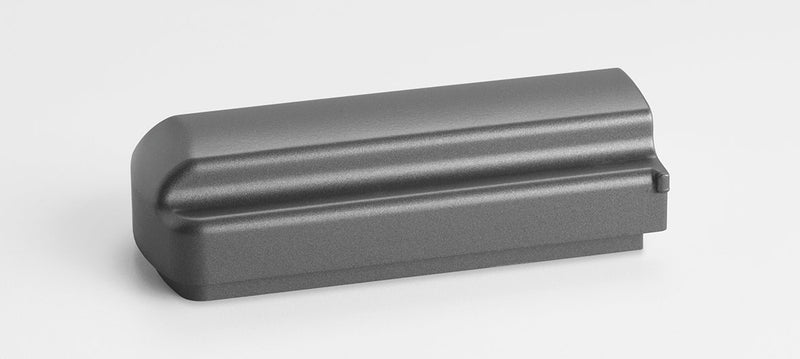

  • Satin Metal Black (P7A0A10 & P&SXA10SN)

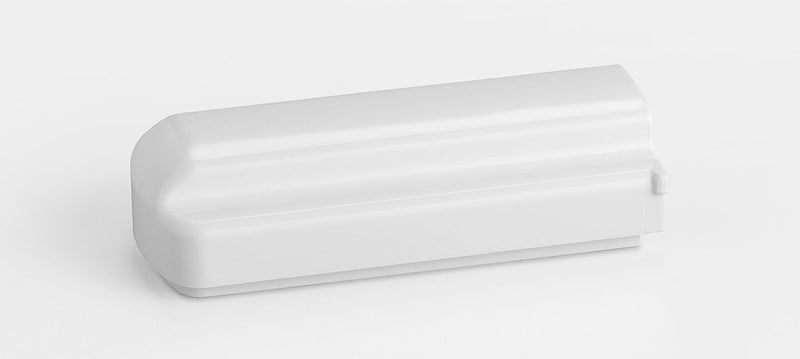

  • Matt White (P7A0A11 & P7SXA11SN)

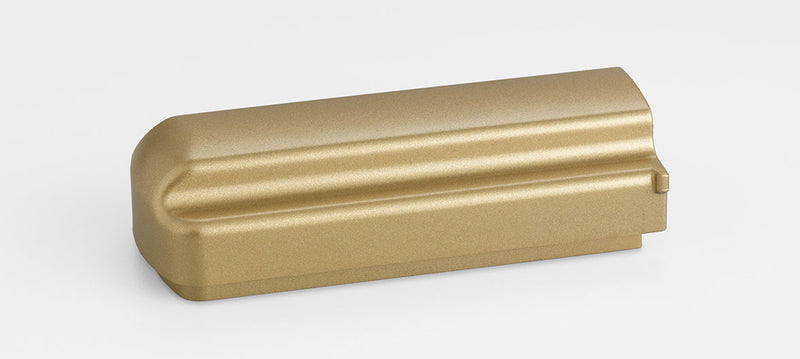

  • Satin Gold (P7A0A1W & P7SXA1WSN)

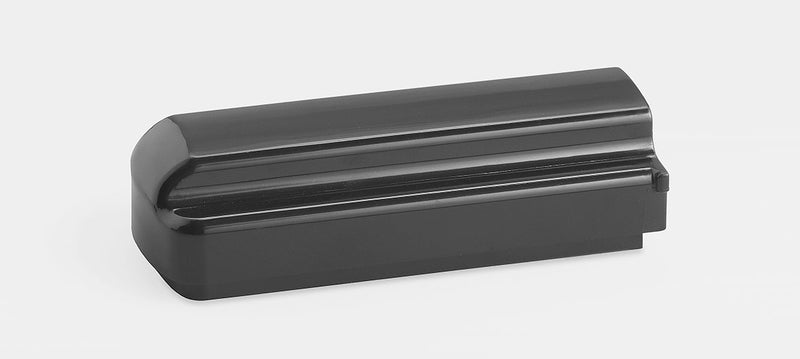

  • Black (P7A0AA3 & P7SXAA3SN)

We can also order the following covers in a as special order, but there would be a minimum order quantity applicable. Please email us at sales@salicedirect.com to enquire.

Cover finishes available to order:

Downloads

 Lapis Series 700 Technical Information

 Dimensions and Assembly Instructions

Description

The new Lapis range from Salice is made of two covers which move with the hinge elements synchronously, hiding the technical components and enriching the product with refined aesthetics, far from the traditional geometries of furniture hinges.
