Description

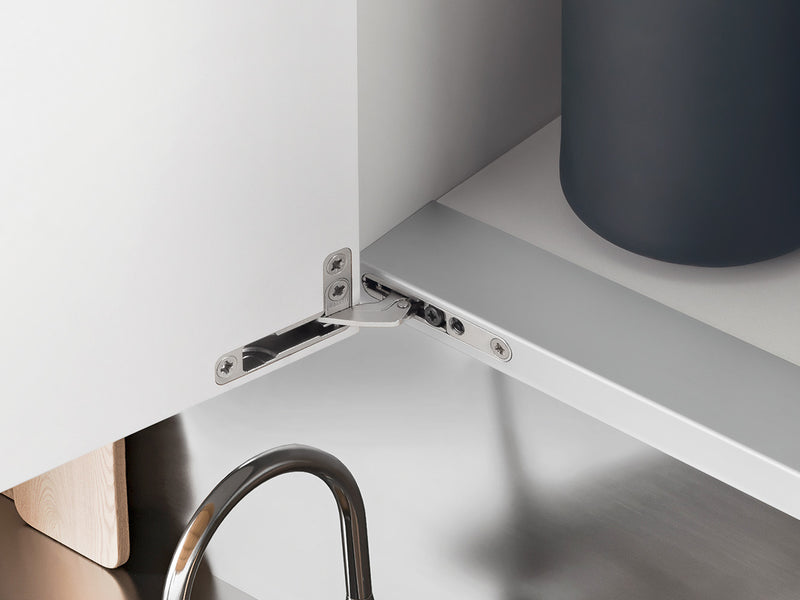

This listing is for the model featuring integrated push-to-open mechanism.
Please note the magnetic catches are sold separately. You need to purchase:
1 x DPMB289 Magnetic Release Device
1 x DP39XXG Adjustable Magnetic Retaining Catch
Available in:

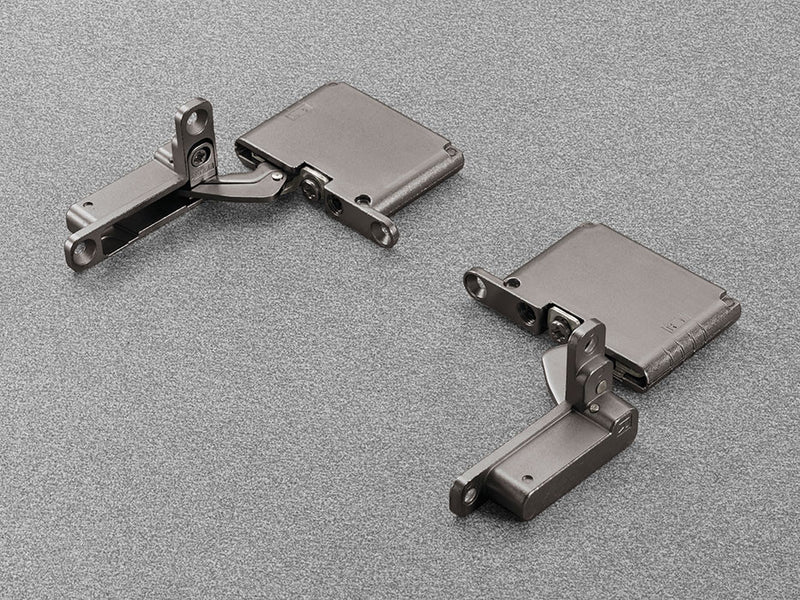

- Titanium - CELPX66XXV

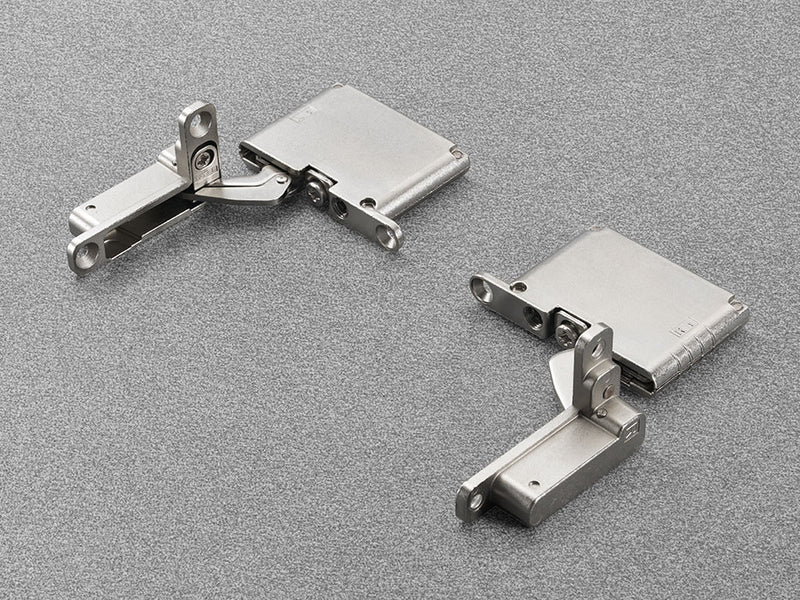

- Nickel - CELPX99XXV
Please select your requirements using the drop down boxes.
Specifications

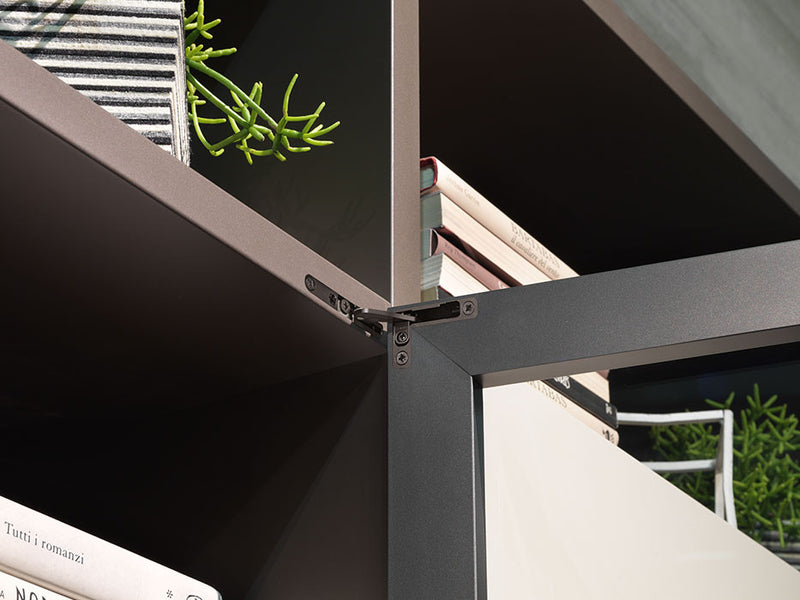

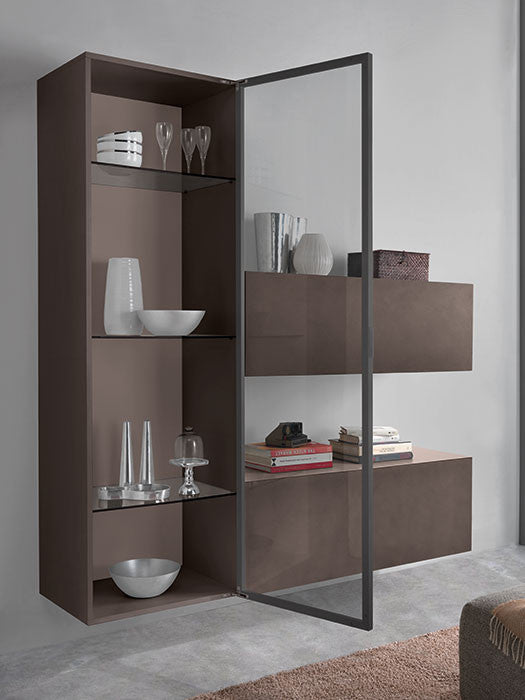

- For minimum 18mm thick doors and aluminium framed doors
- Maximum Door Weight: 20kg
- Maximum Door Dimension: 2100mm (h) x 600mm (w)
- 16.5mm Deep Metal Cup in Door
- Gap require between door and frame: 2.5mm
- 105 Degree Opening
- Possible drilling distance on door: 3-6mm for wooden doors
- Fixed 4mm for aluminium doors
Downloads
Air Technical Brochure PDFVideo
