Description

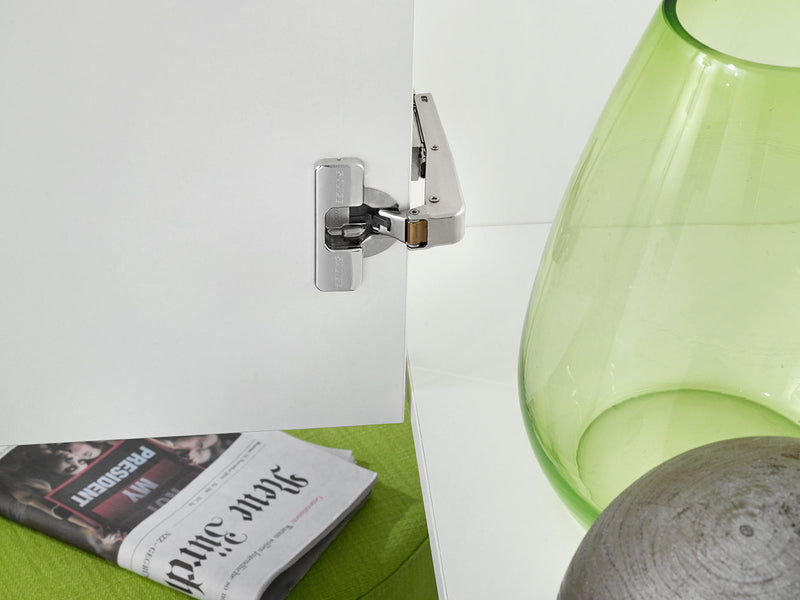

The Salice Silentia+ Series 700 range is an integrated soft close hinge designed for standard doors between 16-26mm thick. The new Silentia+ system is operated by twin silicone-oil dampers housed in the hinge cup. The decelerating effect is adjusted by using a simple switch.
The hinge allows the door to soft close quietly and smoothly whilst still presenting a tidy finish with no adaptors required.
This is a crampon hinge usually used on blind corner cupboards.
Tech Details

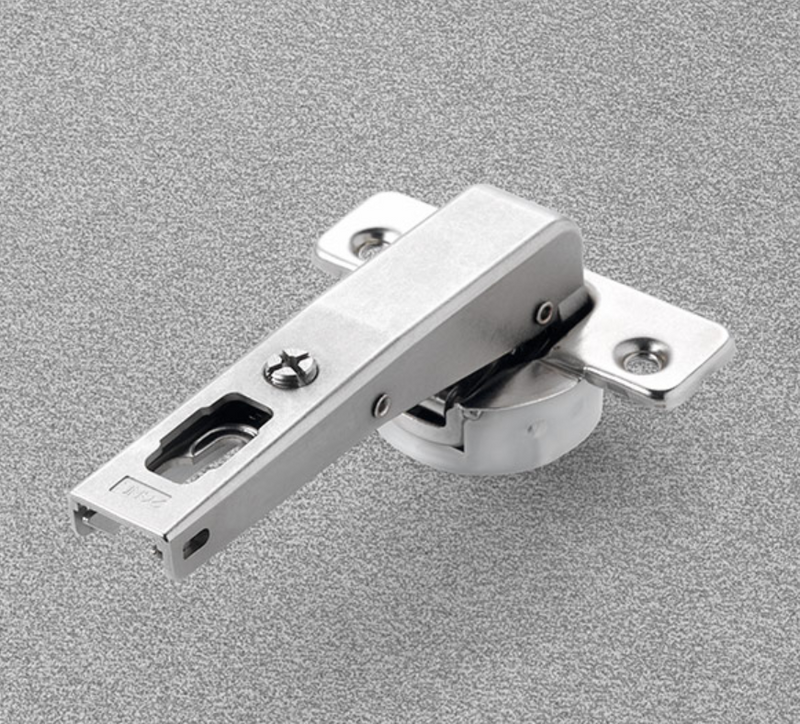

- Crampon hinge
- For cabinet sides with 37x32mm standard drilling
- 48mm screw centres
- Wood screw fixing (not supplied)
- To suit door thickness 16-26mm
- 35mm diameter cup
- 13.5mm deep cup
- 110 Degree opening
- Possible drilling distance (K): 3mm - 6mm
- E min:
- •61 mm for Series 200 mounting plates.
•70 mm for Domi snap-on mounting plates.
•74 mm for Domi snap-on mounting plates with back cam
Which mount plate?

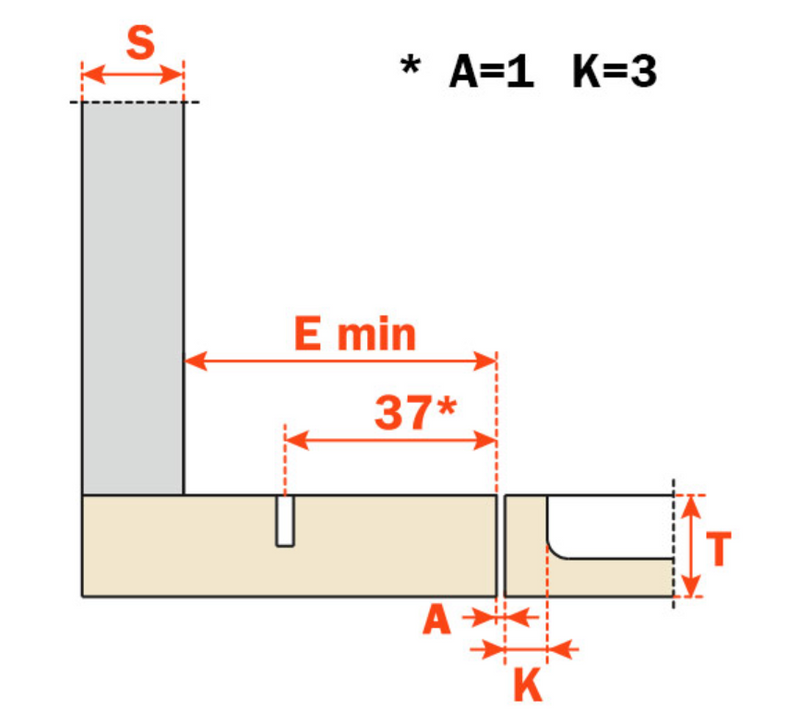

This hinge is compatible with all screw-on and clip-on mount plates. To work out the height of the mounting plate required please consult the image below.
Hinge ID
If you are unsure which hinge you have please forward a few photos of your hinge to sales@salicedirect.com
